Overview

Basic Info.

Model NO.	430-1
Certification	CE, ISO 9001:2000, ISO 9001:2008
Condition	New
Drill Hole Diameter	115-152mm
Drill Hole Depth	10-30m
Bit Type	as Per Request
Drilling Way	Impactor
Type	Crawler
Weight	6440 Kgs
Dimensions	7120X2450X3540mm
Engine	74kw
Rotation Torque	3200 N.M
Drilling Hole Diameter	115-152 mm
Dht Hammer	4 Inch
Drilling Rod	76X3000mm
Disel Tank Volume	110 L
Transport Package	as Request
Specification	International Standard
Trademark	ZGYX
Origin	China

Product Description

Product Introduction:

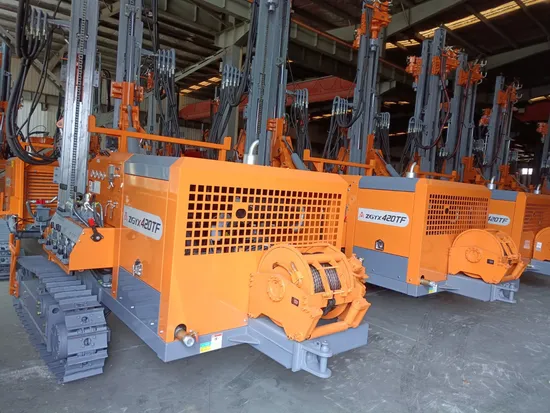

This small split down the hole drilling rig is mainly designed for various types of mines such as quarries, cement mines, and open-pit coal mines. It is equipped with a 3.5-inch impactor and features a 90 hole diameter, high drilling efficiency, excellent dust collection effect, and wide applicability. It is widely used in mines, national defense, transportation, water conservancy, and rock engineering projects, and is an ideal rock drilling equipment that is highly popular among users.

Product features:
1. Replacing the original aluminum pump with a dual iron pump and a single iron pump significantly improves dust collection efficiency and pump lifespan; 2. The engineering single reinforcement track and plunger motor make the product quality more reliable, with stronger walking driving force, and can better adapt to the complex geological and road environment of open-pit mines; 3. One person on the control panel can operate all projects, improving work efficiency and reducing costs. Centralized operation also increases safety and comfort; 4. The dual motor rotary head has been changed to a single motor rotary head, and a standard 490cc displacement motor is equipped to meet the requirements of high-speed working conditions.

Product Description Product Application

Model

420TA-1

425-1

430-1

Weight

5,550 kg

6,230 kg

6,440 kg

Dimensions (LxWxH)

5,600×2,308×2,500 mm

7,000×2,250×2,700 mm

7, 120×2,450×3,540 mm

Engine (standard)

Yuchai/74 kW

Rotation torque (MAX)

3,200 N.m

3,200 N.m

3,500 N.m

Drilling hole diameter

Φ90-138 mm

Φ90-138 mm

Φ115-152 mm

DTH hammer(Standard)

4"(inch)

4"(inch)

4"(inch)

Drilling rod

Φ76×3,000 mm

Diesel tank volume

70 L

80 L

110 L
