DESCRIPTION

Basic Info.

Model NO.	UDS
Motor	AC Motor
Drill Hole Diameter	Nq
Drill Hole Depth	300-1000m
Bit Type	Diamond Bit
Drilling Way	Rotary
Electrical Motor Power	75-132kw
Applicable Drill Rod	Bq, Nq, Hq
Crawler Chassis	Optional
Drilling Angle	0-360 Degrees
Transport Package	Nude Packing
Specification	2700*1020*1540
Trademark	BOHWA
Origin	China
HS Code	84304900
Production Capacity	10 Sets/Month

Product Description

Underground Core Drill Rig in NQ Borehole DiameterDrilling Angle: 0-360 degrees; Control TableFeeding, rotation, reversing, rod lifting, clamp jaw tightening and releasing, winch winding and releasing all controlled through the handles on the control table.Simple in operation but powerful in control.Power UnitThe power unit is mounted on a wheeled frame independent to the drill body. It is composed of electric motors, hydraulic pumps, hydraulic cylinder, hydraulic oil tank, and electric control box.RotatorHydraulic chuck with interchangeable jaws in the power head allows adaptation to different size rods. The spindle speed can be automatically adjusted by hydraulic motor.

Crawler Chassis: Optional

I. Technical Specification Note: above depth are basing on vertical drilling and it will vary from different rock formation

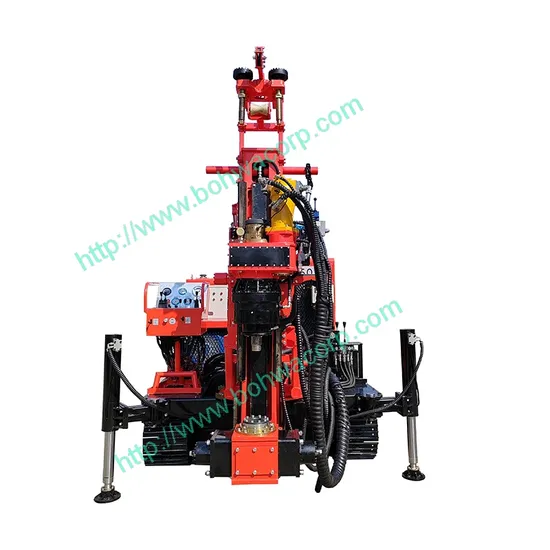

II.Photos of Machine

Model		UDS-450	UDS-600	UDS-800		UDS-1000
Drilling Capacity (downward): Max. Drilling Depth &Borehole diamter	BQ	600m	850m	1000m		1,300m
	NQ	450m	650m	800m		1,000m
	HQ	350m	450m	550m		650m
Drilling Capacity (upward): Max. Drilling Depth &Borehole diamter	BQ	300m	425m	500m		750m
	NQ	225m	325m	400m		500m
	HQ	175m	225m	275m		325m
Drilling Capacity (horizontal): Max. Drilling Depth &Borehole diamter	BQ	480m	680m	800m		1,040m
	NQ	360m	520m	640m		800m
	HQ	280m	360m	440m		520m
Electrical Motor Power		75KW/380V	90KW380V	110KW/380V		132KW/380V
Max. Torque of the Rotator		1,000N.m	1,600N.m	2,000N.m		2,400N.m
Rotator Rotation Speed		0 ~ 1,200rpm
Rotator Feeding stroke		1,800mm
Rotator Inner Diameter		92mm			103mm
Drilling Angle		0°~ 360°
Lifting Force of Winch		12KN		15KN
Axial Lifting Force of the Rotator		≤90KN		≤ 135KN
Axial Feed Force of the Rotator		≤90KN		≤ 135KN
Hydraulic System Operating Pressure		28MPa	32MPa
Steel Winch Cable		6mmx500m	6mmx800m	6mmx1,200m		6mmx1,500m
Hydraulic Mud Pump		BW-160/10	BW-160/10	BW-160/10		BW-250
Net weight (without Crawler)	Hydraulic Power Station	1100kg	1200kg	2200kg		2400kg
	Control Table	140kg	140kg	140kg		140kg
	Main Drilling Frame	2200kg	2250kg	2900kg
Dimension (without Crawler)	Main Drilling Frame	4.3x1.1x1.75M		4.3x1.1x1.85M
	Control Table	0.96x0.55x1.05м
	Hydraulic Power Station	2.2x1.2x1.3M		2.5xx1.3x1.85M
