Overview

Basic Info.

Model NO.	YG-1000
Certification	CE, ISO 9001:2000
Condition	New
Motor	AC Motor
Drill Hole Diameter	250-300mm
Drill Hole Depth	>200m
Bit Type	Diamond Bit
Drilling Way	Rotary
Type	Crawler
Color	Yellow or Blue
Delivery Time	Within One Week
Engine	95kw
After-Sale	1 Year
Wearable Parts	Provided
Loading	One 40FT Container
Transport Package	Nude
Trademark	YG
Origin	China
Production Capacity	1000sets

Product Description

Product Description

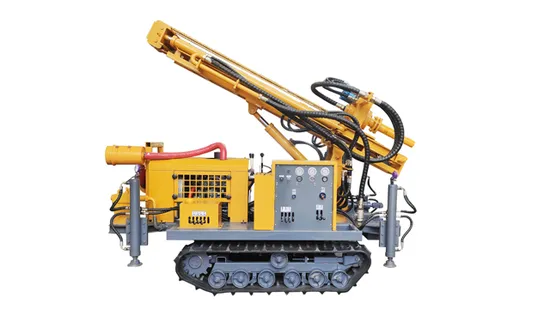

YG300 Super hydraulic transmission, CNC control, automatic drilling experience Drilling Rock:20M~40M/Hour YG series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The well drilling rig machine can work on different formations, well drilling diameter up to 245mm. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.

Specification for pneumatic water well drilling rig
Model	YG300
Total Weight(T )	10
Dimensions(mm )	5400*2200*2870
Drilling Diameter(mm)	130-325
Drilling Depth(m)	400
One-time Advance Length of the Drill(mm)	6600
Walking Speed(km/h)	2.5
Climbing Ability(max )	30
Min.Ground Clearance(mm )	300
Working Air Pressure(Mpa )	1.7-3.5
Air Consumption(m3 /min )	17-35
Main Power(kw)	110KW/Yuchai
Rotation(rpm)	45-115
Rotary Torque(N.m )	7000-9000

Product Parameters

Features:
1.High drilling efficiency, power provided by 85KW diesel engine 2.High efficiency, large rotary torque 3.Integrated automation equipment,All terrain moves by itself 4.Adopt consummate design, long service life 5.Self loading and unloading,Easy to operating
