Overview

Basic Info.

Model NO.	CS300
Certification	CE
Condition	New
Motor	Hydraulic Motor
Drill Hole Diameter	140-325mm
Drill Hole Depth	Max.300m
Bit Type	Diamond Bit
Drilling Way	Rotary
Type	Four-Wheel trailer
Applicable Industries	Farms, Construction Works, Energy & Mining, Water
Weight	7200 Kg
Drilling Diameter	140-325mm
Key Selling Points	Flexible Manufacturing
Power Type	Diesel
Dimension(L*W*H4000mm*1700mm*2600mm)	4100*2000*2500mm
Equipped Capacitor (Kw)	85kw
Swing Speed	45-70-140 Rpm
One-Time Advance Length (M)	3.6
Width of Loading (M)	2.7m
Climbing Angles (Max.)	30
Swing Speed (Rpm)	45-70-140
Equipped with Hammen	Medium/High Wind Pressure Series
Using Air Pressure(MPa)	1.7-3.0
Air Consumption	15-35
Transport Package	Carton and Wooden
Specification	CS300 85KW
Trademark	CS Dril
Origin	Hunan, China
Production Capacity	100 Piece/Pieces Per Month

Product Description

1. Are you exact manufacturer or just trading company?
We are both, we have our own factory. And also have many long-relationship factories.

2.What is your minimum order quantity?
Our MOQ are 1pc or 1 complete set, the price may rely on the order quantity. We are welcome your sample order to testing our quality.

3. Can you accept OEM & ODM?
Yes, both of them are acceptable,.Please tell us your requirements or design drawings kindly.
As we have our own R&D team and the team leader is Dr.Zhao mingchun who has been always
in the material research and drawing design of drilling tools for 25 years. And he had designed
the world's biggest top hammer bit and DTH hammer bit, highly praised by the users.

4. How about the delivery time?
It depends, generally it takes about 15-25. If have stocks, Usually only 5-10 days if in stock.

5. Can I have a visit to your factory before the order?
Sure, welcome, kindly contact us for address details and time schedule.

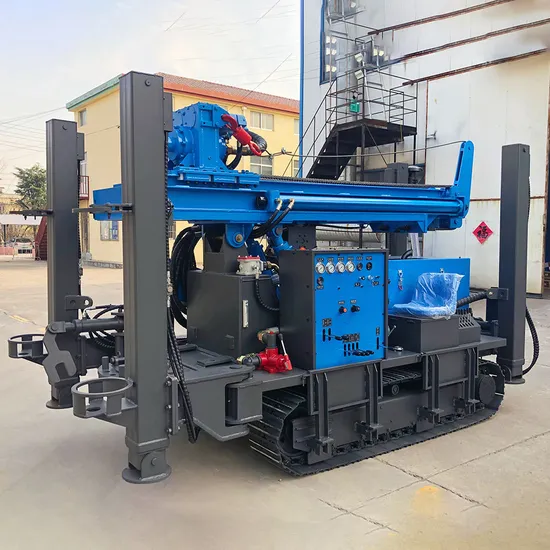

CS300 truck-mounted drilling rig to drill water wells 300m Tractor Truck Type Water Well Drilling Rig

Product Description

truck-mounted drilling rig to drill water wells 300m Tractor Truck Type Water Well Drilling Rig widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.

Remark: This drilling rig needs to be used with an air compressor. If you want to buy an air compressor at the same time, Please tell us your drilling depth and diameter. And we will give the corresponding recommendation. We can also put the drilling rig on a truck mounted chassis. Our engineers will help you get what you want.

1. Energy saving. Low tower design, can drill indoor and outdoor. 2. Patented product, unique design and simple drilling structure. 3. Easy to transport and can learn how to handle the machine in short time. 4. Assure easily operation and long life service life

CS300 truck-mounted drilling rig to drill water wells 300m Tractor Truck Type Water Well Drilling Rig
The Weight (T)	7.2 T		Drill pipe diameter	Φ76 Φ89 Φ102
The Hole Diameter(mm)	140mm-325mm		Drill Pipe Length (m)	1.5m 2.0m 3.0m
Drilling Depth (m)	300 m		Rig lifting force (T)	18T
One-time advance length (m)	3.6 m		Rapid Rise Speed (m/min)	22 m/min
Walking speed (km/h)	2.5km/h		Fast Feeding Speed(m/min)	40 m/min
Climbing angles (Max.)	30
Equipped capacitor (kw)	85 KW		Hoisting force of winch (T)	2 T
Working Air Pressure (Mpa)	1.7-3.0 Mpa		Swing torque (N.M)	5700-7500
Air consumption (m³/min)	17-36 m³/min		Dimension (mm)	4100*2000*2500mm
The drilling efficiency (m/h)	15-35 m/h		High leg Stroke (m)	1.4 m
Width of loading	2.7 m		Equipped with hammer	Medium and high pneumatic pressure series
The engine brand	Yuchai Engine
