Overview

Basic Info.

Model NO.	SW-350J
Certification	CE, ISO 9001:2000, ISO 9001:2008
Condition	New
Motor	58kw Diesel Engine
Drill Hole Diameter	75mm-300mm
Drill Hole Depth	600m
Bit Type	Diamond Bit
Drilling Way	Rotary
Drilling Method	Rotary Mud Drilling, Air Hammer Drilling
Machine Type	Mechanical Top Drive Rotation, Hydraulic Feeding
Walking Way	Crawler
Application	Water Wells, Geological Mineral Exploration
Transport Package	in 40FT Container
Specification	5480*1675*2500mm
Trademark	SONGTEMACH
Origin	6500kgs
HS Code	843041
Production Capacity	500sets/Year

Product Description

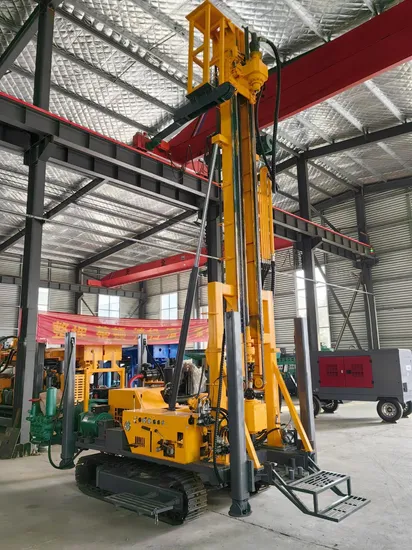

SW-350J Songte 300m 600m exploration drilling machines mine exploration drill machine diamond core drilling BQ NQ HQ coring equipment

SW-350J drilling rig is a mechanical top-drive drilling equipment that integrates water drilling and air drilling. It solves the difficulty of drilling with air drills and down-the-hole hammers in soil layers, and the low construction efficiency of water drilling and mud drilling in hard rock layers, gravel, and pebble layers. It is a water-air dual-purpose drilling rig that is suitable for various formations and has high efficiency in drilling cores for geological exploration and in drilling water wells. It is widely used in drilling water wells, geothermal wells, engineering holes, geological exploration, mineral exploration, etc. It is suitable for various construction techniques: air down-the-hole hammer drilling, mud drilling, single-tube coring, double-tube rope coring, etc.

Main feature:
1. The drilling rig speed can reach a speed range of 14-1030r/min, and the maximum output torque is 9800N.m.
2. The drilling rig adopts a long-stroke double-speed mechanism and a mechanical power head with a stroke of 3400MM to improve drilling efficiency and reduce drilling costs.
3. The drilling rig adopts dual oil pumps to supply oil. A single pump is used when drilling, and the two pumps are combined when lifting the drill. The power loss is small and the auxiliary time is short. 4. It adopts crawler chassis and the outrigger cylinder stroke is 1.5m, which can be loaded automatically, making it easy to relocate and transport.

Technical Parameters:

1. our packing is standard export package. 2. the machine could be loaded into 40' container. 3. our delivery time is 10-15 days after receiving the order.

1. Professional pre-sale service

We provide you with the preliminary planning, preliminary planning, equipment selection, product design, product introduction, question answering, technical support, customized services, etc.

2. Quality Assurance Service

We have established a dedicated quality inspection department, and each equipment must undergo strict inspection before leaving the factory to ensure the normal operation of the machine.

3. Guaranteed after-sale service

We provide one year quality warranty service, customers enjoy lifelong VIP services, including online technical guidance and training service, etc.

Henan Songte Machinery Co., Ltd is the leading machinery manufacturer and foreign trading enterprise in China, is the integrity of scientific research and development (R&D), manufacturing, technical service and oversea trading of high quality drilling equipment company, the main products are water well drilling rigs, rotary piling machine, solar pile driver, core drilling rig, DTH drilling rig, anchor drilling rig, engineering drilling machines, etc.

The company has a complete range of high-precision machining machines and testing equipment, providing a strong and powerful quality guarantee for the production of high-quality products. With rich R&D and production experience, excellent talent team, as well as strong product innovation ability and production scale, we have created a batch of products with excellent performance and excellent quality, which are highly praised by the majority of users and quickly sold worldwide, and have attracted widespread attention in the international market with good brand effect. The company's products are exported to more than 50 countries and regions around the world, including the United States, Australia, Canada, Chile, Brazil, South Africa, Kenya, the Philippines, Malaysia, and South Korea, etc.

1. Why choose us?
We have been researching and producing drilling rigs for 20 years, our products have the characteristics of large torque, high drilling efficiency, economic cost, low failure rate, well received by customers.

2. How can you guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment; and our main machine has one-year warranty, we also have special technical service team which will provide you professional guidance.

3. Can you do OEM for me?
We accept OEM orders, just contact us and give your design. We will offer you a reasonable price and make the machine according to your demands.

4. What payment term do you accept?
We can accept T/T, L/C, western union, money gram, paypal, etc.

5. Do you have any certificates for your machine?
Yes, our machines have gained the certificates of CE, ISO, QC, etc.

6. How long can you deliver the machine?
Generally, we can deliver the machine in 7~20 days.

Product Description

Drilling capacity	42mm mud drilling depth	450m
	NQ wireline coring drilling depth	600m
	90mm air drilling depth	400m
	drilling diameter	75-300mm
Feeding system	Lifting capacity	16Ton
	Thrusting capacity	8Ton
	feeding length time	3500mm
Power head	forward Rotary speed	30~1030 r/min
	revised Rotary speed	56~265 r/min
	Max. Torque	9800N.m
Drilling Method	Mechanical top head rotation, hydraulic feeding,work with mud pump or air compressor
	Loose soil layer and bed rock ( Hardness: F6~20 )
Power Unit	Power	58KW turbocharging
	Rated speed	2400rpm
Winch capacity	Hydraulic tool winch(optional)	1.5 Ton
	Mechanical winch	5 Ton
Drill pipe	Drill pipe dia.	Ø76/ Ø89 / Ø50/60mm
	Drill pipe length	3000mm
Air Drilling	Air consumption	16~35m3/min
	Air pressure	10.5~24.6bar
Crawler chassis	Walking speed	0~2 km/h
	Hydraulic high support leg	extension-type, automatic loading on truck
	Climbing angle	20°
Dimension	Transport size	5480*1675*2500mm
	Working size	3880*1575*6280mm
Weight		6500KG
