DESCRIPTION

Basic Info.

Model NO.	MZ385Y
Type	Pressure Pile Driver
Pressure Pile Driver Type	Hydraulic Pile Driver
Pile Hammer Type	Hydraulic Hammer
Power Source	Diesel
Motor Power	84 Kw
Noise	With Noise
Certification	CE, ISO 9001:2015
Condition	New
Weight	5800 Kg
Climb Ability	35 Degree
Screw Pile Diameter	400 mm
Auger Pile Diameter	400 mm
Transport Package	Standard Shipping Packing
Specification	5300mm*1970mm*2635mm
Trademark	LONGYE
Origin	China
HS Code	8430419000
Production Capacity	300 Sets/Year

Product Description

Product Introduction

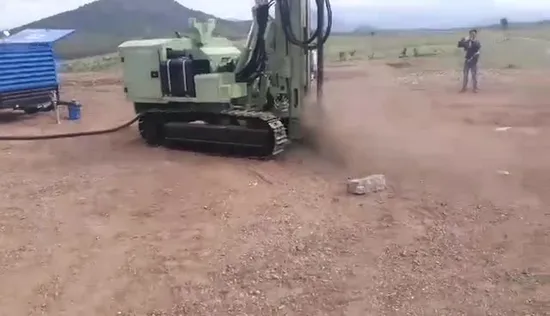

MZ385Y hydraulic crawler drilling rig, uses new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact, and the mast has adjustable compensation function. When drilling, the mast supported on the ground, borehole stability is good.
MZ385Y drilling rig is mainly used for piling, anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc.

Product Display

Product Application

Company Profile

Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents. Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment. On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.



FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set, Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.

Q7: Can I trust your company ?
A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !


Contact


MZ385Y Solar Drilling Rig Technical Parameters

Bore diameter(mm)	90-400
Bore depth(m)	0-100
Air consumption(m³/min)	10-26
Air pressure(Mpa)	0.7-1.6(medium pressure)
	1.6-2.46(high pressure)
Pipe diameter(mm)	76/89/102
For rock(F)	6-20
Bore diameter(screw)(mm)	Max 400
Bore depth(m)	0-30
Screw pipe diameter(mm)	130-400
Once promotion(mm)	3200
Skid pitch(°)	120
Swinging angle of skid(°)	Left right total 40
Boom swing angle(°)	Left right total 45
Rotation Speed(r/min)	0-110
Host Power (Kw)	84
Climb ability(°)	35
Dimension(L*W*H)(mm)	5300*1970*2635
weight(Kg)	5800
Walk speed(km/h)	0-2.5
