DESCRIPTION

• Overview
• Product Description

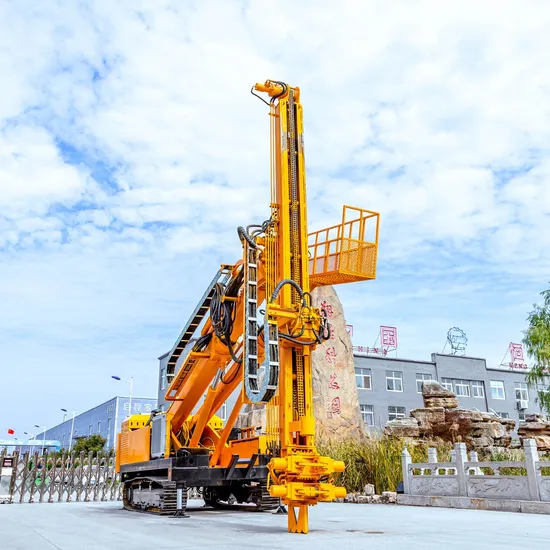

Overview

Basic Info.

Model NO.	15m
Drill Hole Depth	100-150m
Bit Type	Drag Bit
Drilling Way	Rotary
Type	Crawler
Drilling Diameter	300mm, 60mm, 100mm, 200mm, 0-250mm
Drilling Depth	Max.40m
Mobility	Anchor Drilling Rig
Track	3200*2300mm
Product Name	Slope Protection Drilling Rig Electric Motor Anch
Track Shoe Width	400mm
Down Steering	360
Power Head Model	Double Motor Hydraulic Reducer
Electric Motor	45kw
Oil Pressure	25MPa
Engine	4105 Autoclaved
Depth	0-40m
Transport Package	Container
Trademark	HW
Origin	China
HS Code	8430411900
Production Capacity	100sets

Packaging & Delivery

Package Size350.00cm * 230.00cm * 150.00cm Package Gross Weight18500.000kg

Product Description

1. The self-advancing hydraulic propulsion technology reduces frequent manual operations, and has re-developed and designed supporting drilling tools, which can realize multi-bolt propulsion, impact propulsion,rotary rotary excavation, rotary speed increase, anchor cable drilling, etc. operation.rock borehole track air tracking water well drill rig Anchor Digging Pit Poles Quarry Plant Crawler Drilling Rig for Marble Open Pit Mines. 2. With twist drill pipe as the main support medium, with the continuous rotation of the alloy drill bit,implement a certain size of hole rotary digging until the dust and soil in the hole are removed for other follow-up operations. The connection of the twist drill pipe has a certain degree of fit, and it is made by friction welding, and the geological drilling within 50 meters directly breaks through.rock borehole track air tracking water well drill rig Anchor Digging Pit Poles Quarry Plant Crawler Drilling Rig for Marble Open Pit Mines . 3. It has a fast excavation speed and is suitable for rock-soil doping engineering. It has a strong impact on the hard rock encountered in the soil when drilling slope protection, and it can achieve rapid advancement with layered alloy drill bits.rock borehole track air tracking water well drill rig Anchor Digging Pit Poles Quarry Plant Crawler Drilling Rig for Marble Open Pit Mines.

The Technical Parameters about the 10m/12m rock drill FAQ

Q1. What is your terms of payment? Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q2. What is your terms of delivery? Ans.: EXW, FOB, CFR, CIF. Q3. How about your delivery time? Ans.: Generally, it will take 7 -10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q4. What is the warranty of our machine? Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one. And we provide videos for machine install and operation. Q5. What is your terms of packing? Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods. Q6. Do you test all your goods before delivery? Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine. Q7.Do you Preferred provide wear parts for transacted clients? Ans.: Yes, we have recor ds for your clients, and will prefer providing accessories to clients. Q8: How do you make our business long-term and good relationship? Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friendand we sincerely do business and make friends with them, no matter where they come from. Q9.Do you have any certificates for your machine? Ans.: All of our produ c ts coming with the certificates of CE, ISO9001. Product Description

Name	10m Crawler rock drill	12m Crawler rock drill
Track	3200*2300mm	3200*2300mm
Track shoe width	400mm	400mm
Down steering	360°	360°
Big arm	Double big arms three sections	Double big arms three sections
Power head model	Double hydraulic power head	Double hydraulic power head
Electric motor	45kw	45kw
Drilling angle	Can drill flat holes / drill oblique holes / drill vertical holes	Can drill flat holes / drill oblique holes / drill vertical holes
Oil pump	63/63	63/63
Oil pressure	25Mpa	25Mpa
Drilling diameter	0-250mm	0-250mm
Pressurized cylinder	2.5	2.5
Depth	0-40	0-40
Engine	4105 Autoclaved	4105 Autoclaved
Outrigger	Four hydraulic outriggers	Four hydraulic outriggers
Rear counterweight	Telescopic 1 meter	Telescopic 1 meter
Hydraulic radiator	Increase double fan	Increase double fan

The Main Features about the anchor drilling rig

1. Full hydraulic control, convenient and flexible operation, convenient displacement, good maneuverability, and time-saving and labor-saving.rock borehole track air tracking water well drill rig Anchor Digging Pit Poles Quarry Plant Crawler Drilling Rig for Marble Open Pit Mines . 2. The drilling rig gyrator is driven by dual hydraulic motors with large output torque, which improves the drilling stability of the drilling rig.rock borehole track air tracking water well drill rig Anchor Digging Pit Poles Quarry Plant Crawler Drilling Rig for Marble Open Pit Mines . 3. It can be equipped with a new angle changing mechanism to make it more convenient to align the holes, and the adjustment range is enlarged, which can reduce the requirements on the working surface.Anchor Digging Pit Poles Quarry Plant Crawler Drilling Rig for Marble Open Pit Mines.
